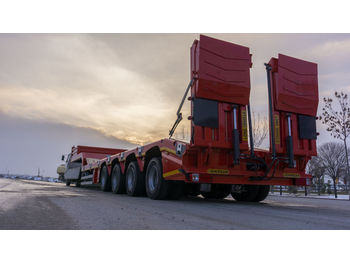

Semi-remorque surbaissé neuf EMIRSAN Direct from factory 4 Axle Lowbed Trailer with Steering Axles

+90 554 500 5000 Direct Line ( Whatsapp )

TECHNIICAL CONDIITIIONS:

4 Axle Lowbed Semi Trailer Technical Specifications

Structure and Dimensions:

Total Length: 13600 mm

Platform Length: 9300 mm

Goosneck: 3800 mm

Width: 2550 mm + 375 mm on each side extension profiles

Platform Height: 920 mm

Structure; Platform Type (Two Goose Neck)

It has been produced in welding constructions with gas metal arc welding as "I" crossing from high resistant steel considering overloads proper to capacity and intended usage

Platform Material; - Top middle part of the platform shall be covered by 3/4 mm thick metal sheet pursuant to utiliziation. Steel 8 mm shall be installed onto the sides of the platform ( points where the pallets or wheels are) to provide maximum friction. Excavator Wheel base will be cover with wood.

Loading Ramp; It is a hydraulic system. Ramp movement shall be provided by installation of a covered button. Width of the ramp shall be 800 or 1000 mm.

Axles ; 4 Axle with Turkish Brand BPW Eco Type shall be 140 x 140 mm square cases. And each axle has 12 ton capacity. First axle will be liftable 3 and 4 axle is self steering

Suspension; Turkish Brand air spring suspension

Electrical system ; 2x7 pin sockets – 12/24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear

2 tail & stop combined lamps (red)

2 turn signal combined lamps (orange)

1 reverse lamp (white)

Steel supports for the laps

Brake Equipment: - Wabco ABS brake system will be used,

Dual circuit brake hardware, 24” Service brake bellows fitted to axle 2 24x30” Emergency brake fitted to axle 1 and axle 2 Load balancing distribution valve, Automatic brake adjusters

Tires ; 16 Pieces 245/70 R17,5 Goodyear brand

Rims ; 16 Pieces 17.5 Steel JANTAS or JANTSA brand

King Pin: - Certificated Turkish Brand Jost Type Steel king-pin which is 2 or 3,5”

- Kin pin Height 1400 mm.

Parking Legs:- Certificated Turkish Brand Jost Type Two speed, telescopic, mechanical conveyor legs, with the capacity of 25 tons

Painting ; Before the painting, surface and accessories of chassis are made cleaned and sand blasted

DYO or equivilant brand high build epoxy filter is used for first painting.

DYO or equivilant brand is used for the main painting (3 times ).

The RAL code color selection is made according to customers choice.

Accessories:

-1 x 6 kg fire extinguisher

-1x Closed type metal or plastic box for one unit spare tire carrier

-1 x 60 lt.plastic water tank (at the left side of tanker)

-2 x 3M reflector side and rear
