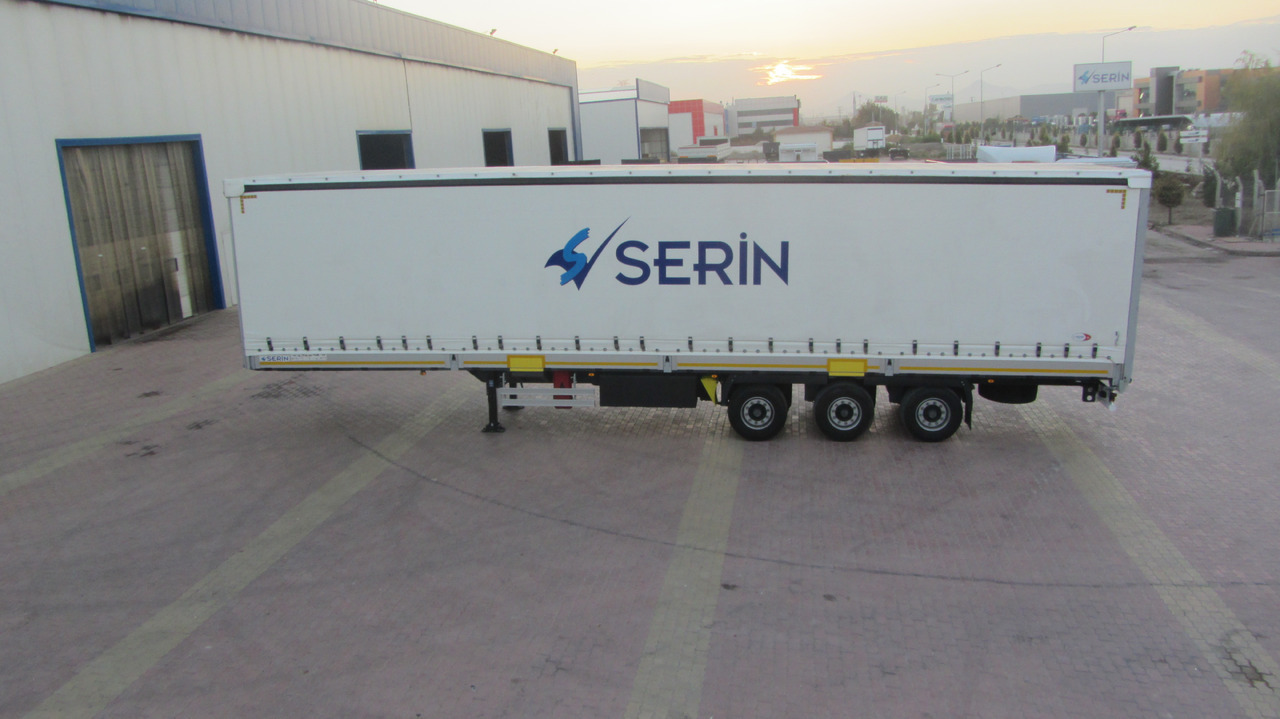

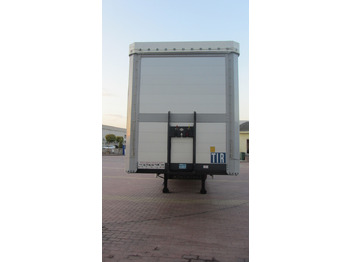

Crédit-bail de SERIN Optima Curtainsider Semi Trailer

STANDART OPTIONS

Chassis

— Steel Material “I” profile it is produced with gas welding, it has high quality strength, Standard Chassis Type, produced according to the 98/91 EEC standards Inner Lenght Dimension

—Length 13750 mm x Width 2600 mm x Height 2900 mm

Over All Lenght Dimension

—Length 13600 mm x Width 2480 mm x Height 2700 mm

Platform

—Phenolic waterproof plywood plate (30 mm)

King Pin

—2” king pin according to the 94/20 EEC

—Pin detachable from below made by SAE standards 8 bolt type OMS brand.

Axles

—3 x 9.000 kg carrying capacity SAF brand Disc Brake Type

Brakes & Suspension

—Air Suspension —EBS Brake System WABCO or KNORR brand, automatic load adjusting valve 71/320 EEC and 2002/78 EC standards

— Automatic Slack Adjuster

Landing gear

—Double Speed,

—24000 kg carrying capacity SAF brand

—Mechanical Landing Gears

Rear Bumper

—Suitable 70/221 / AT-version of the rear bumper

Tire Chock

—Carriers with 1 unit wheel chock

Tires and Rimes

— 6 PCS 385 65 R 22,5 Single tire type

— Goodyear, Bridgestone, Michelin or Equivalent brand

— 120 offset 22,5 x 11,75 Rim, 280,8 x 335 x 10 wheel stud M 22 x 1,5

Mud Cover

—6 Units full plastic mudguards fited with galvanized steel holders.

Spear Wheel Carrier

— 1 piece tire carrier Basket type

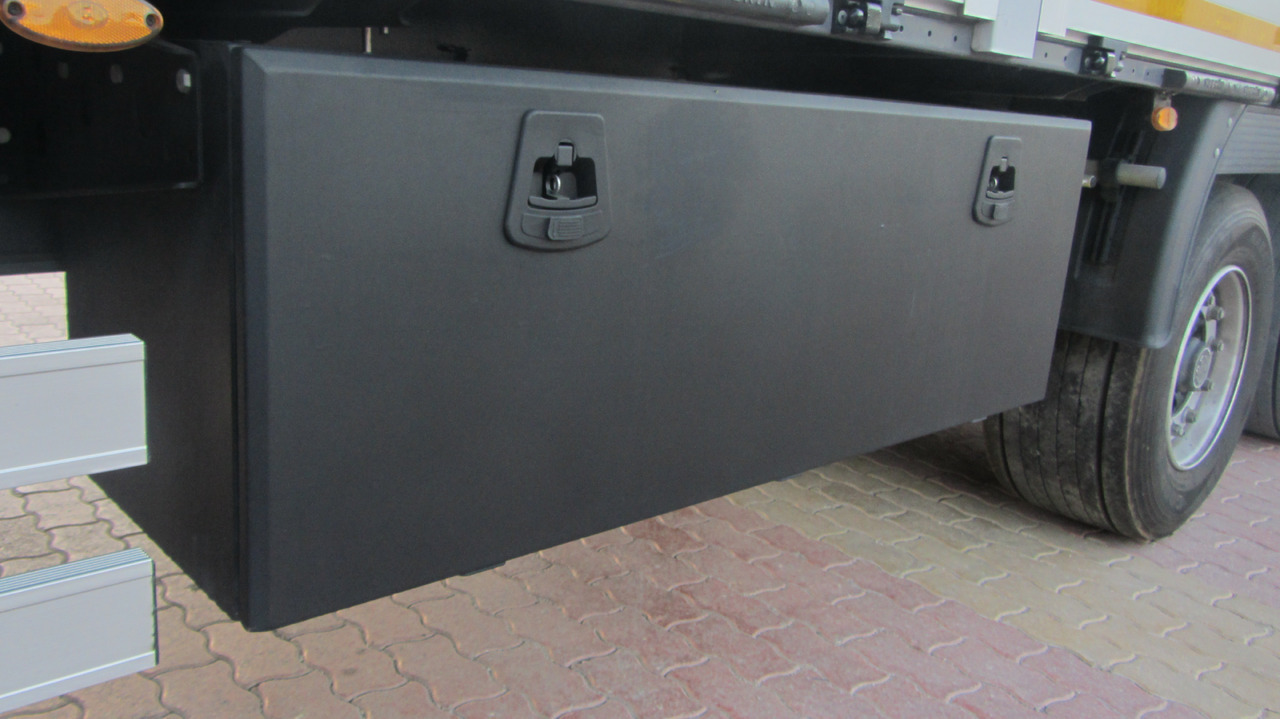

Tool Box

—1 pcs Plastic Tool Box 80 x 50 x 50 cm

Paint

—Steel Material surface are cleaned by grit metal and send, which is shot blasted on the surfaces of the metal.

—2 Floor Epoxy primers are made and final paint with standard RAL 7024 or demand of the customer, total thickness of the paint 150

Electrical System and Lightning System

—3 unit’s amber-colored lights placed on the both sides

—Park lamps at the rear side of the vehicle (with a protective grill)

—License plate lamps,

—Reflector triangles,

—Flame proof electrical system

—2 X 7-pin and 1 x 15-pin electrical socket.

Equipment (Tools)

—Tool box keys

—Ro-Ro Lashing Rings, Fire Extinguisher Box, Rear Ladder, Forklift barriers, Rear Bumper,

Optional Accessories

—According to the demand optional accessories will be added in the proposal

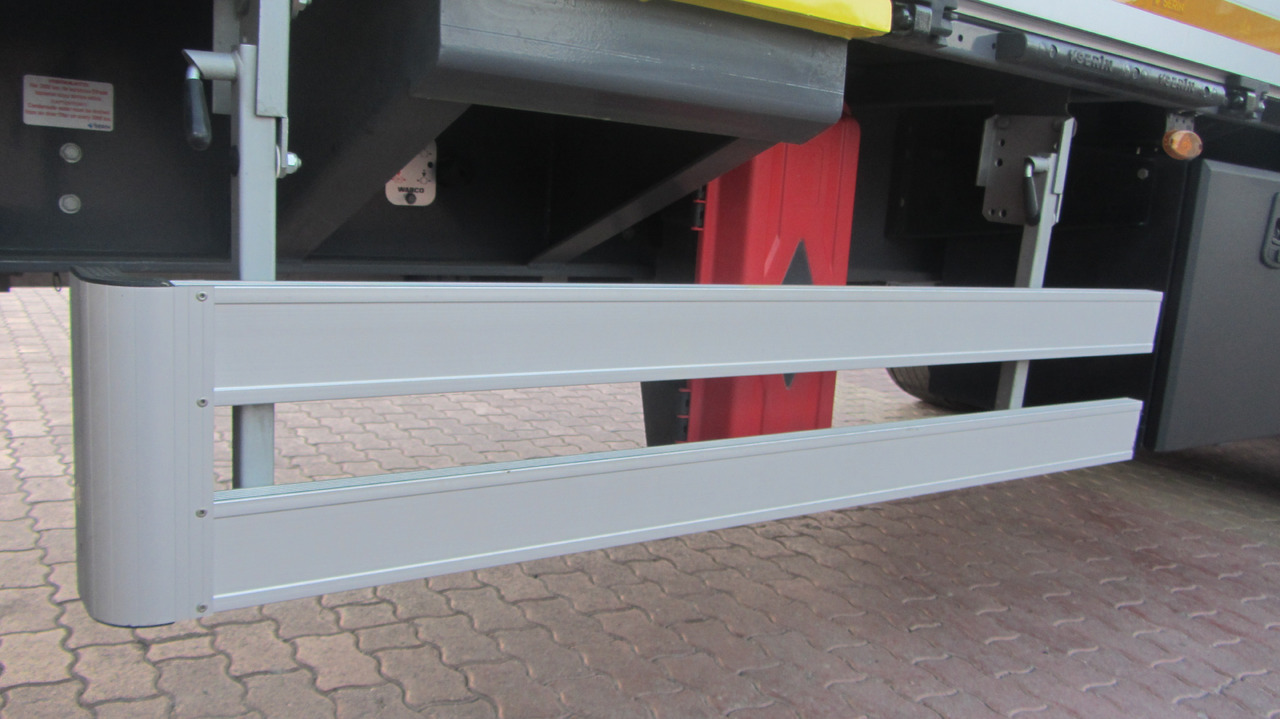

Side Protectors

Side preventive protectors made from high strength material complied with 70/156 EEC standards

BOX STRUCTURE

Panels Dimensions

—Front Wall 20 mm fiberglass reinforced plywood panels

—Floor 30 mm waterproof plywood plate

—Rear Door 30 mm insulated sandwich panel sandwich panel made from fiberglass and foam

—Roof 10 mm polyester fiberglass translucent roof arched crossbeam reinforced 250 mm

—Side Panels 20 mm fiberglass reinforced plywood panels

Panel Structure

—Plywood Panels covered with polyester film with thickness of 30 mm

Sandwich panels made from polyester sheet and foam

Inner Lighting

— 2 PCS Amber colored lights

Rear Door

—Two side rear doors with recessed locks, Sandwich panels made from polyester sheet and foam

Prices are EXW Konya and representative. If you would like to know more information Please contact with us.
