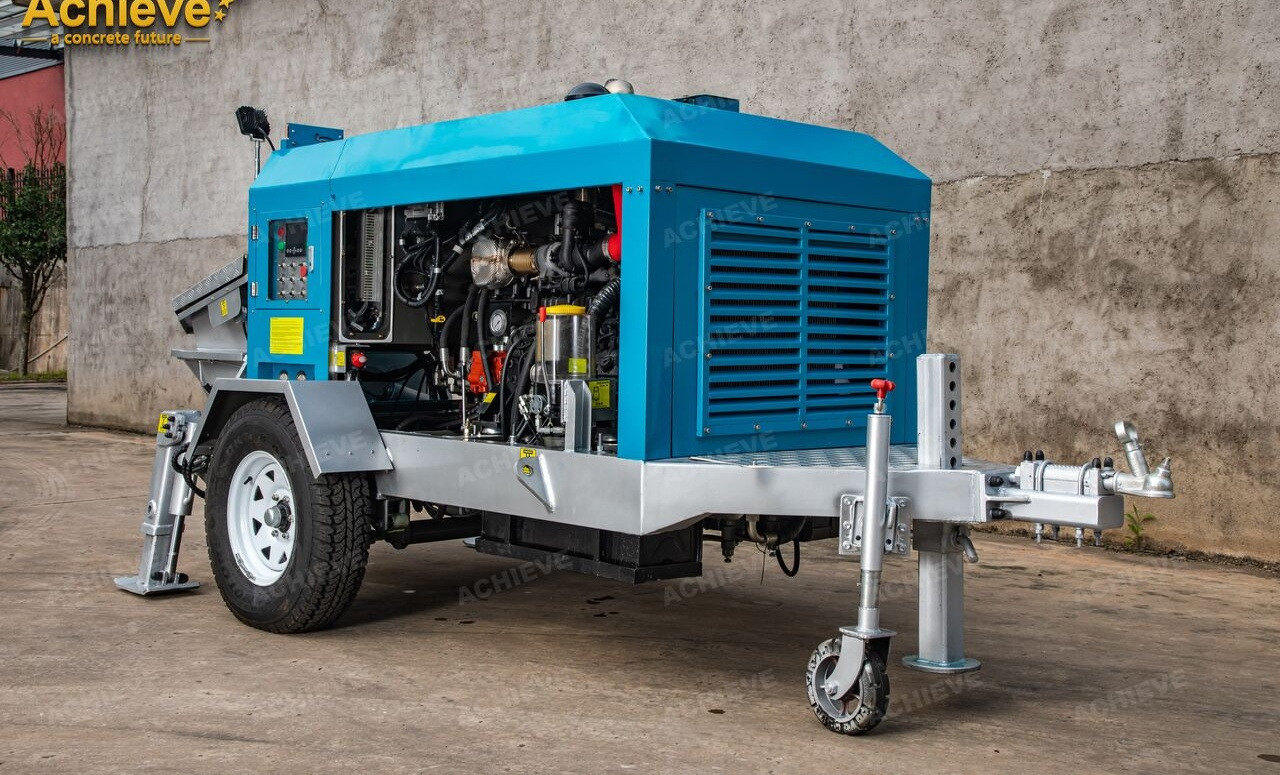

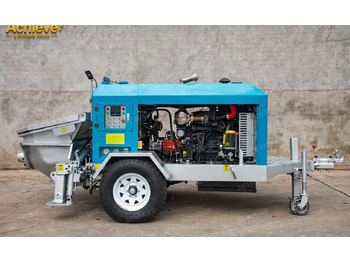

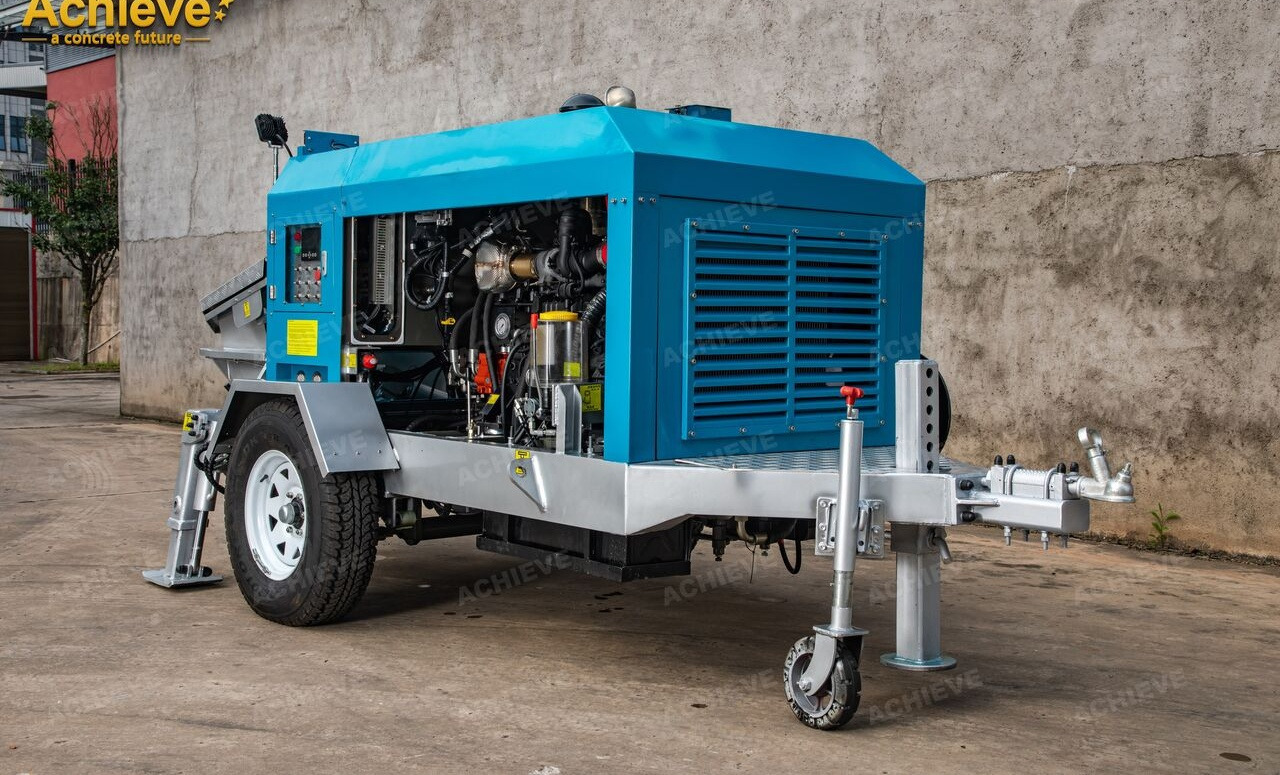

China, China, 410003, Changsha, Room 513, Block 4, Shangming Commercial Center, No. 28, Fuyuan Rd(M), Kaifu District【ACHIEVE】TOP CONDITION!!! ACHIEVE AP300-TDE European Version Of Concrete Pump New Product Trailer Mounted Concrete Pump
The AP300 piston pump is ideally suited for controlling shotcrete smaller than 30 mm, and the AP300 engineers designed and defined a completely new product based on the criteria used by customers in the European market. This machine has more power and a higher lightweight, and every detail has been thought through. The AP300 is easier to maintain than any previous model, requires less maintenance costs and is our most user-friendly design. In addition, ACHIEVE will be happy to explain to you additional advantages and questions about your individual requirements
1.Use industrial motion controllers to optimize fuel output.

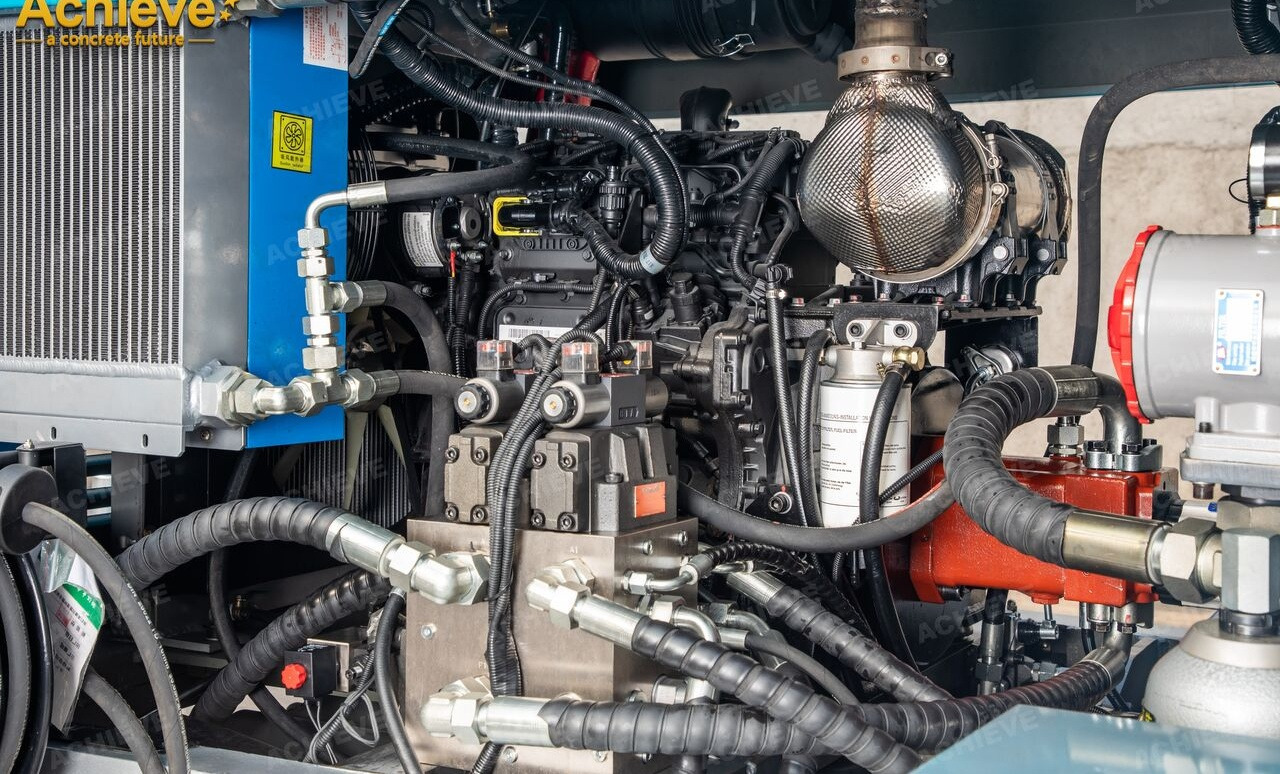

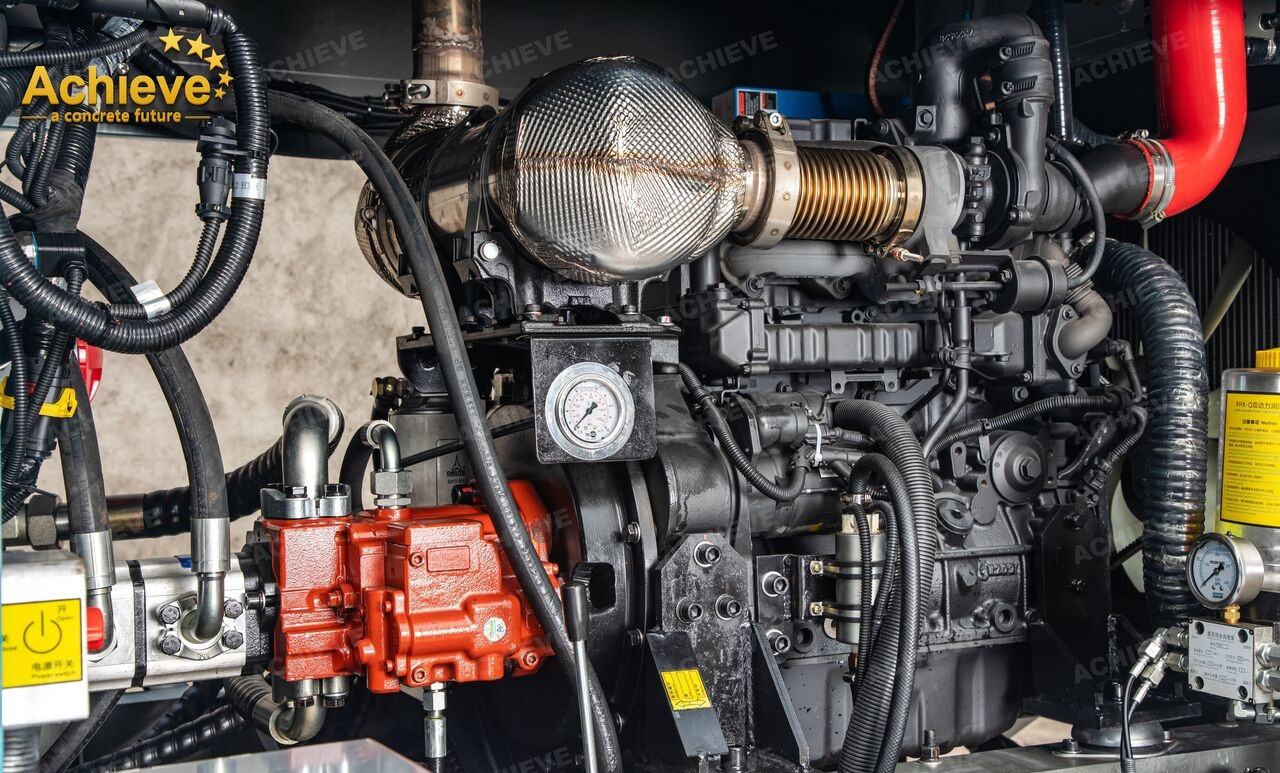

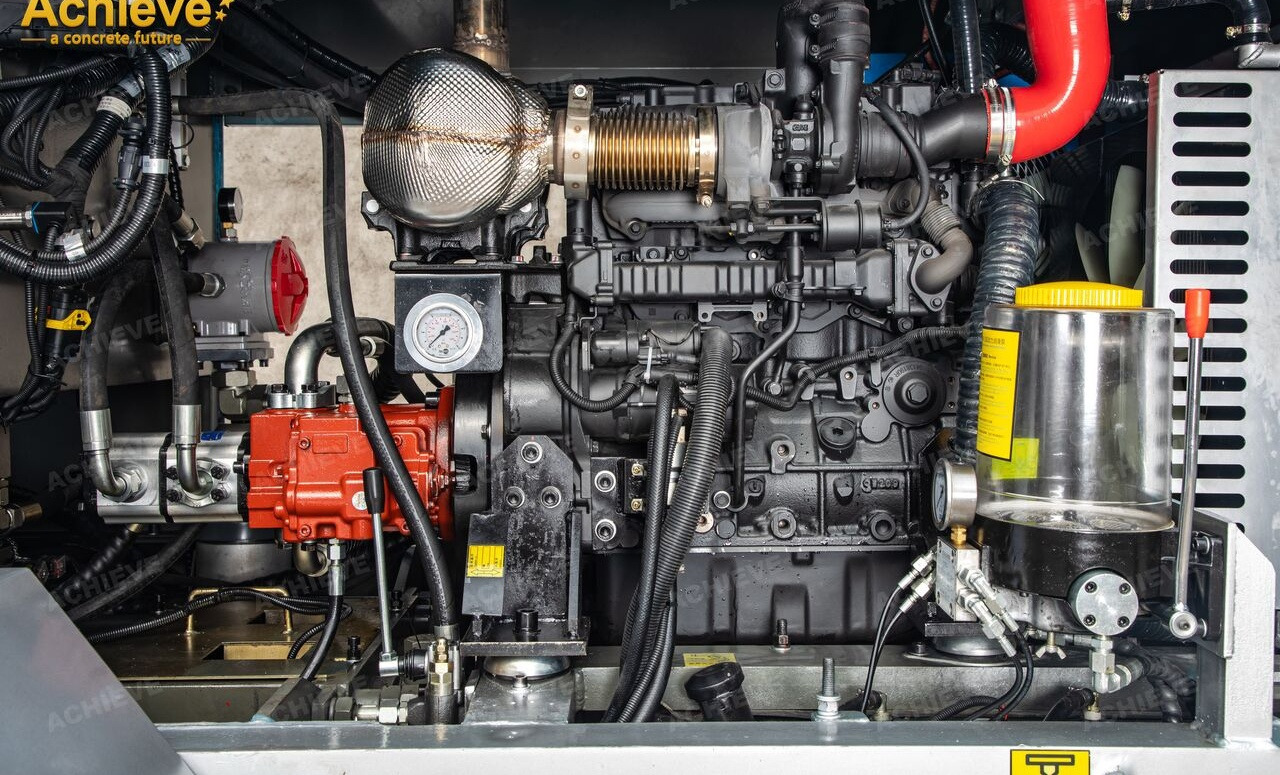

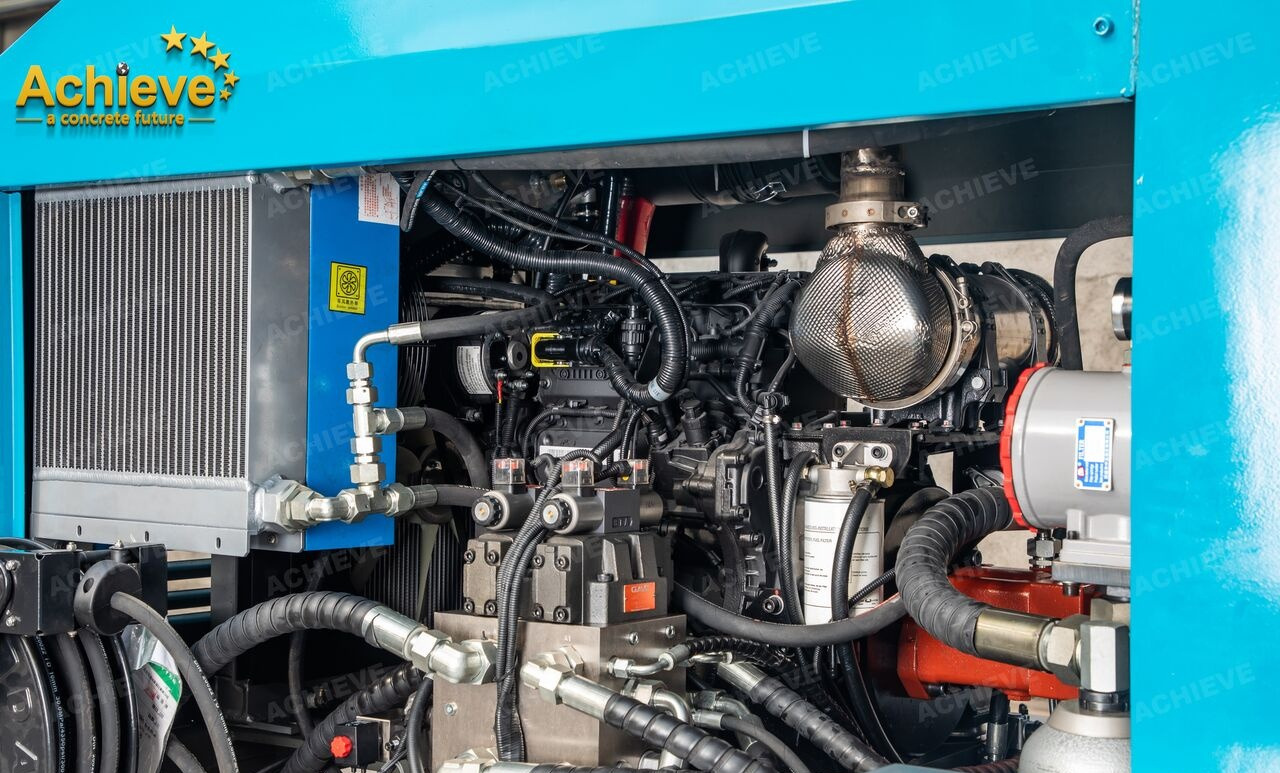

2.The new engine technology of Deutz engines imported from Germany - clean and efficient is suitable for all the requirements of the Stage V "emission standard", obtained the clean emission certificate from the United States, with more power and higher delivery rate.
3.The power of the engine is perfectly matched to the power of the main pump, and the power output is more powerful.
4.Made in China

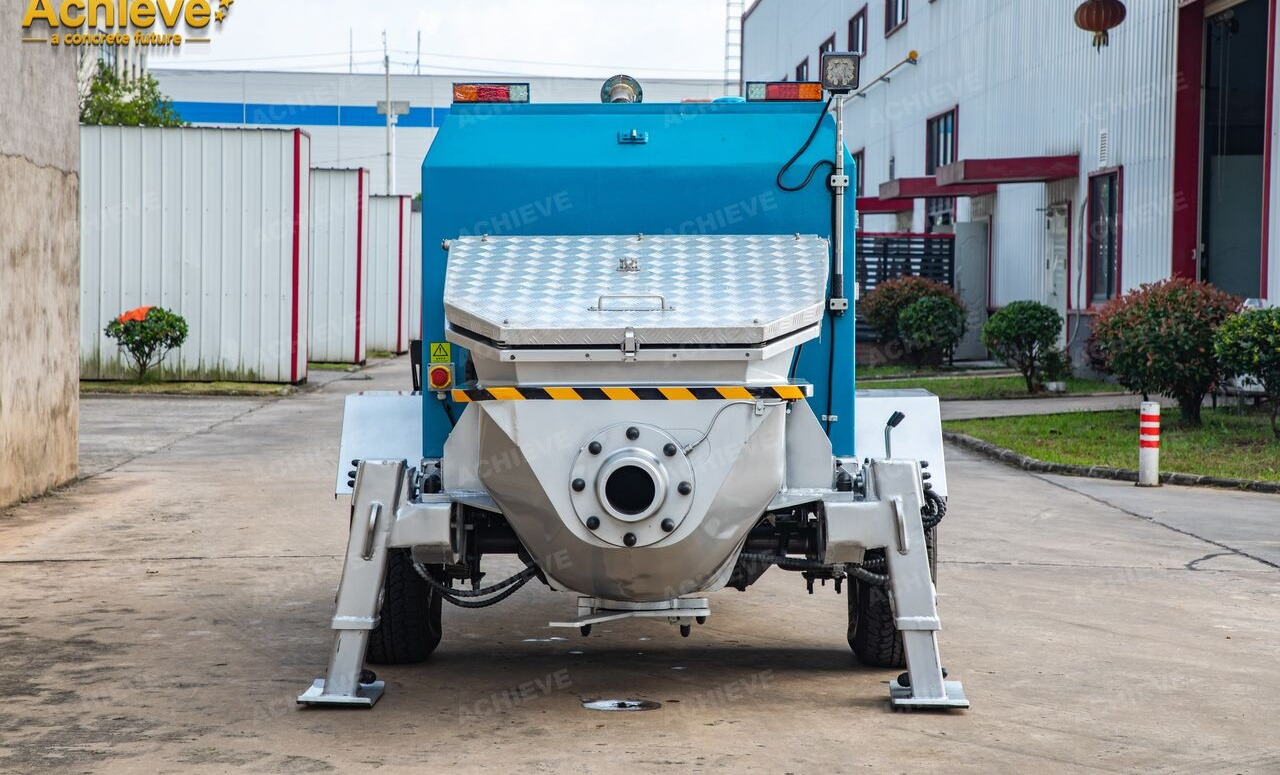

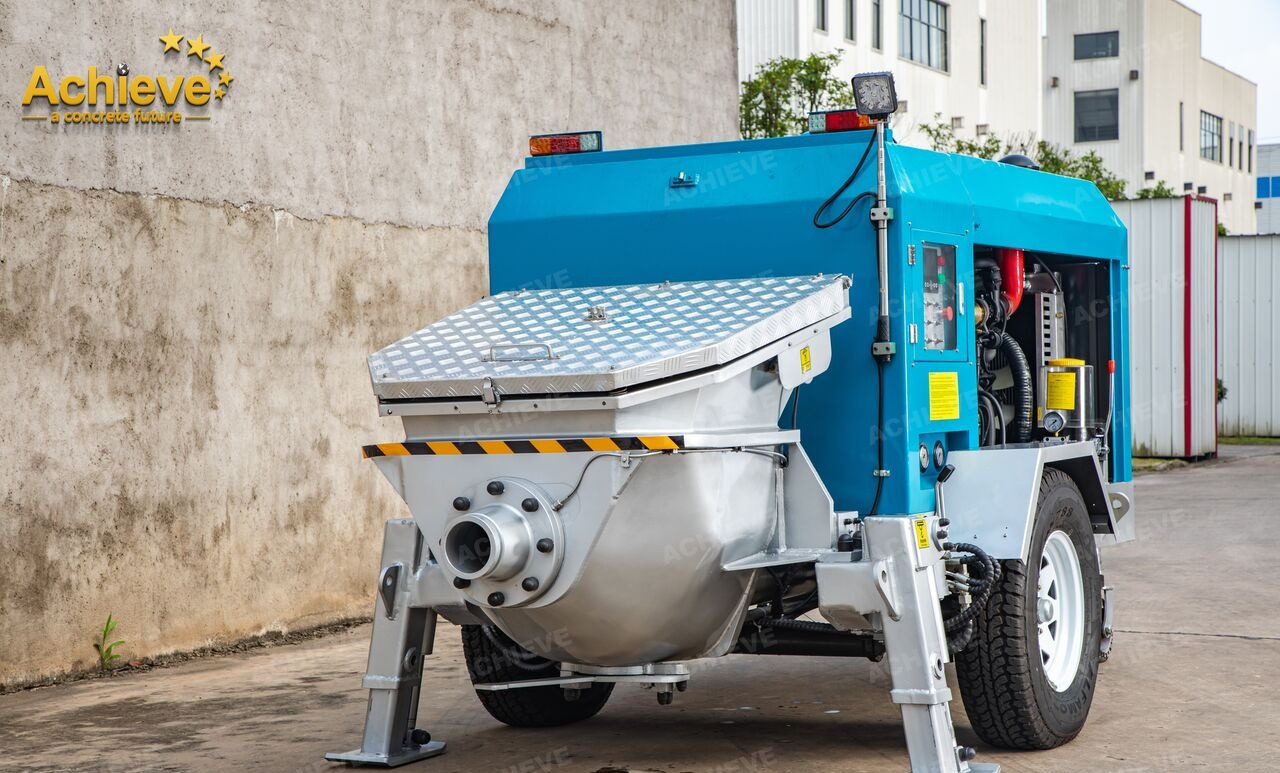

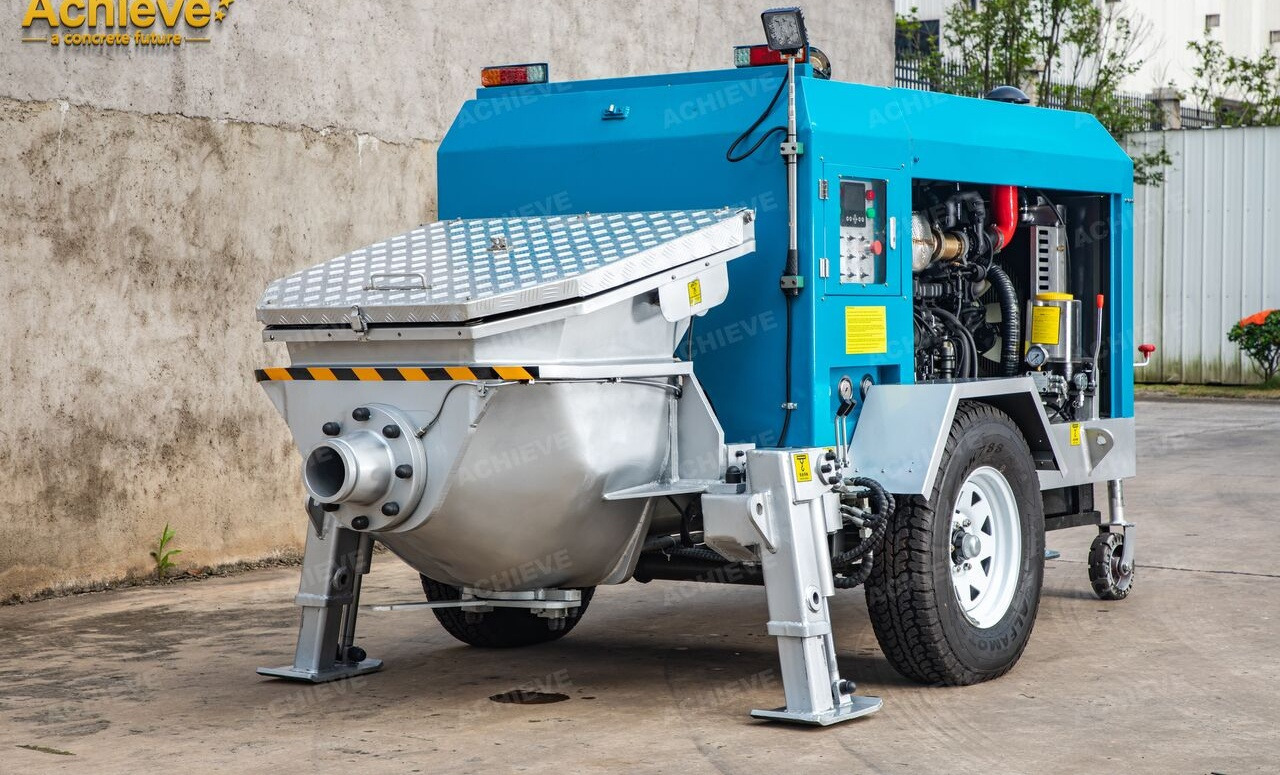

5.Optimized design of the hopper for efficient pumping. Good suction and easy to clean, safe and protected.
6.The wearing parts of the alloy material eye plate are used, and the usability is better.
Hydraulic outriggers, easy to operate, ensure stability

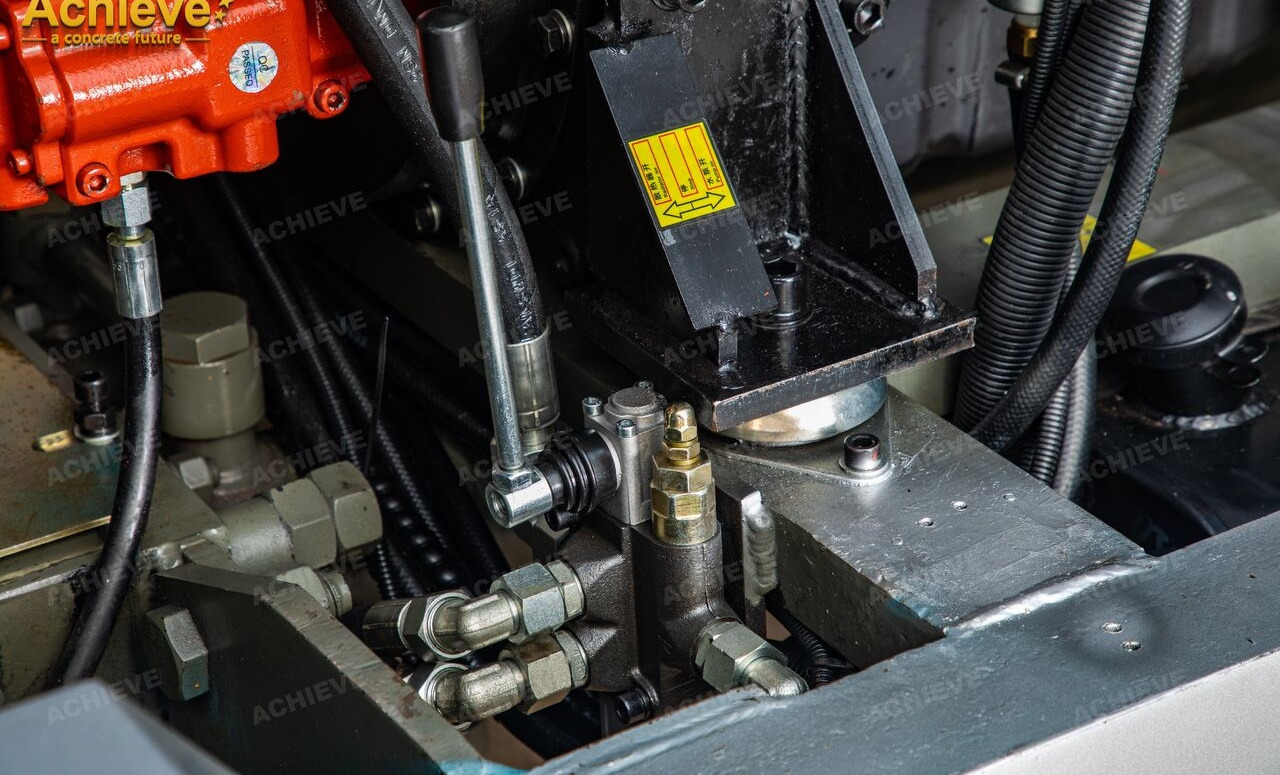

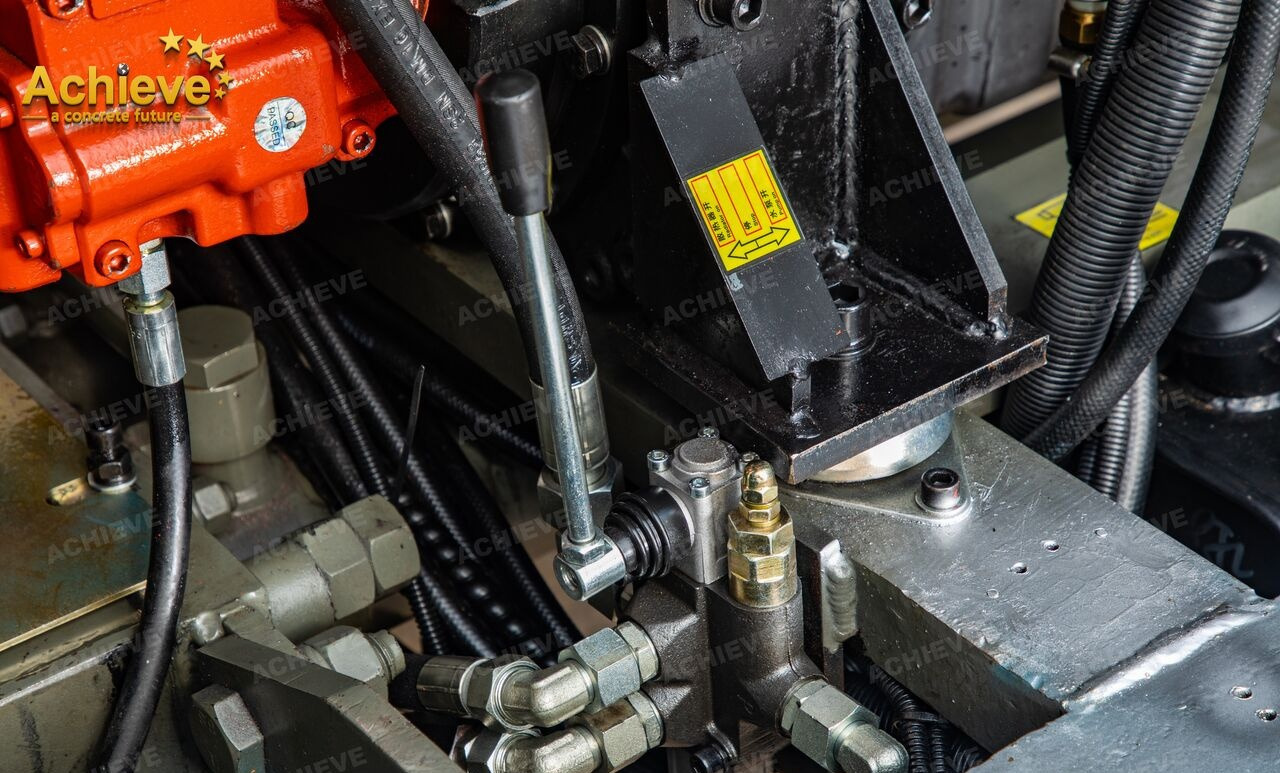

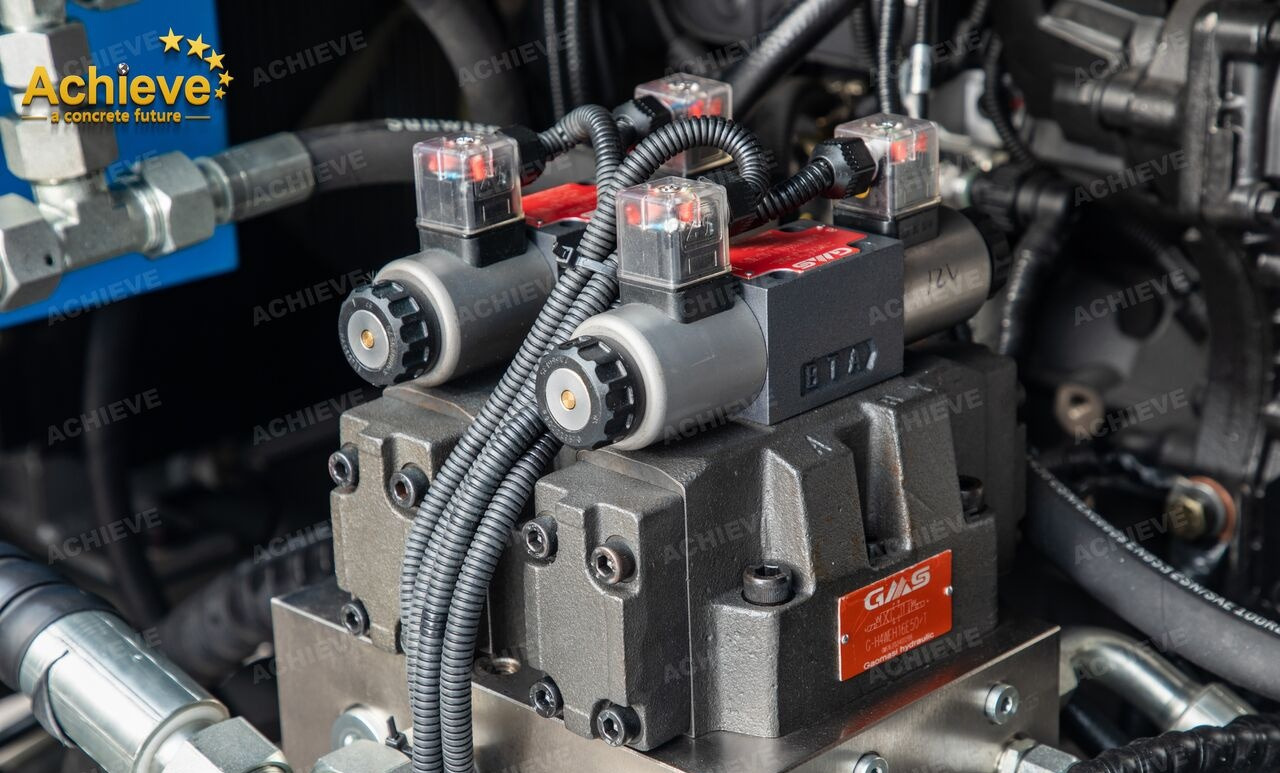

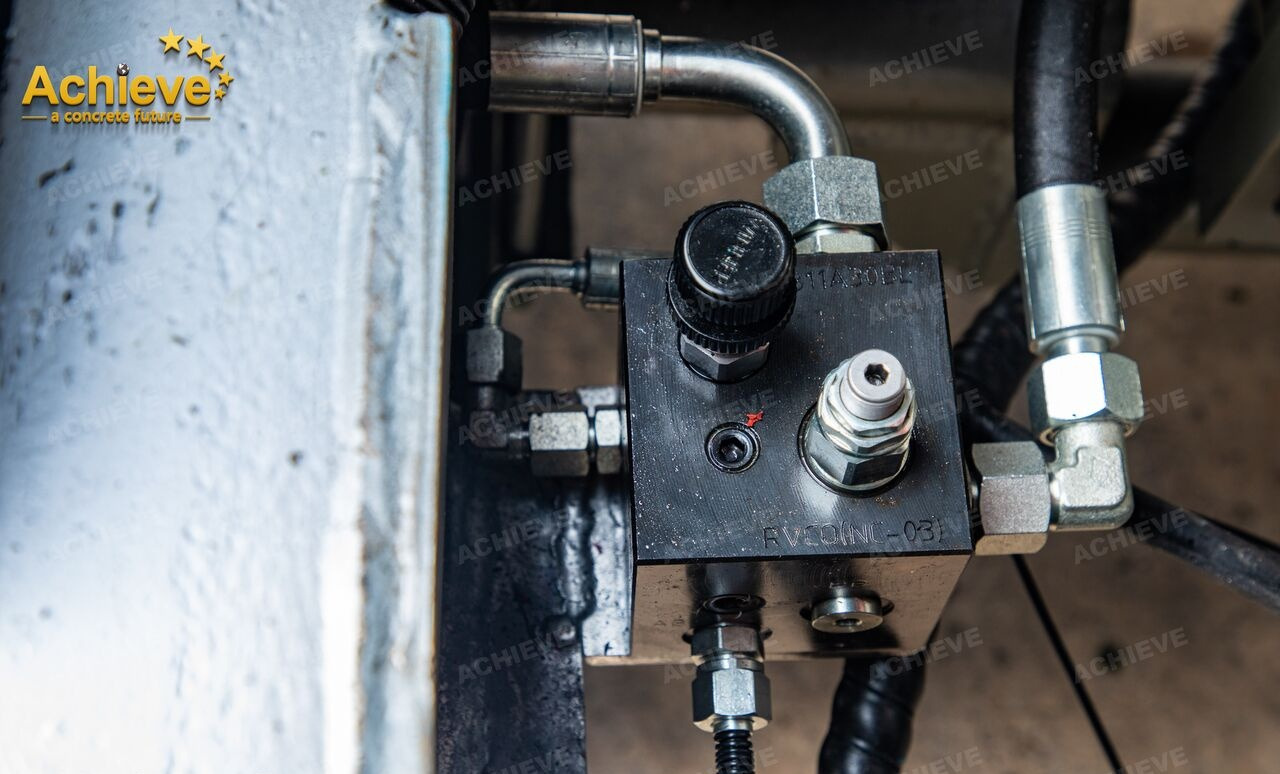

7.Hydraulic system circuit control, intelligent pumping mode and program control mode. Improve the accessibility of maintenance points.
Concrete trailer pump truck parameters
Specifications
AP300-TDE
AP400-TDE
AP500-TDE
Theoretical maximumthroughput
5-25 m³/h
5-30 m³/h
45m³/h
Maximum conveying pressure
80bar
70bar
80bar
Specification of conveying cylinder
160 ㎜
150㎜
180mm
Work schedule
800mm
1000㎜
1000mm
Maximum stroke per minute
27
30
30
Engine brand
Deutz, Köln-deutz
Deutz, Köln-deutz
DEUTZ (imported from Germany)/Dalian diesel engine in China
Engine type
TD2.9-L4 (EKZ11501) 2200r/min
TD2.9-L4（EKZ11505) 2200r/min
TCD3.6L04/BF4M2012-09T3R
Power
50KW
55KW (3.7562 Horsepower）
74.4Kw/72Kw
Discharge
US EPA Tier 4
US EPA Tier 4
Euro 5/Country 3
Fuel tank volume
65L
98L
98L
Volume of hydraulic tank
200L
200L
200L
Hopper structure
S valve
S valve
S valve
Hopper height
960㎜
960㎜
1250mm
Hopper capacity
260L
260L
300L
Outlet diameter
125 ㎜
125㎜
125mm
Maximum aggregate size
≤30㎜
≤30㎜
≤40mm
Trailer
Single Shaft、electric controller
Single Shaft、electric controller
Single Shaft、electric controller
Weight
2300Kg
2600㎏
2600㎏
External dimensions
4600-1780-1720
4800-1850-1750
4800-1850-2200
- The above data is based on experience and depends on the actual power output.

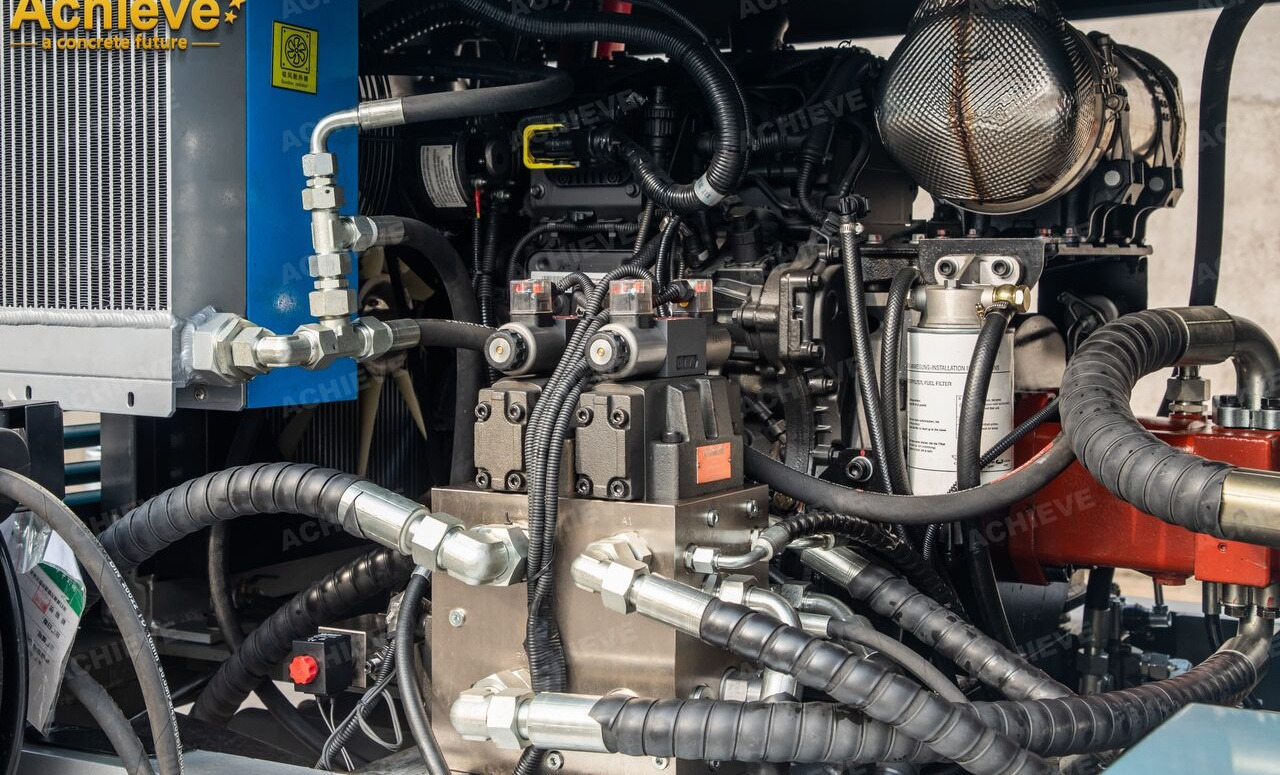

ENGINE INTRODUCTION
Engine type
TD 2.9 (HT)
TCD 2.9 HT
TCD 2.9 HP
Different cylinders
4. In-line
4. In-line
4. In-line
displacement
2.9
2.9
2.9
Highest nominal speed
Min-1
2600
2600
2600
Transpiration
Turbocharger
Turbocharger w intercooler
Turbocharger w intercooler
Power output
kW
44.5 - 55.4
55.4
70-77
velocity
Min-1
2200-2600
2200-2400
2200
Highest torsional force
nautical mile
260 (320)
375
420
velocity
Min-1
1600
1400
1600
Minimum laziness
Min-1
900
900
900
weight
Kg
288
288
288
